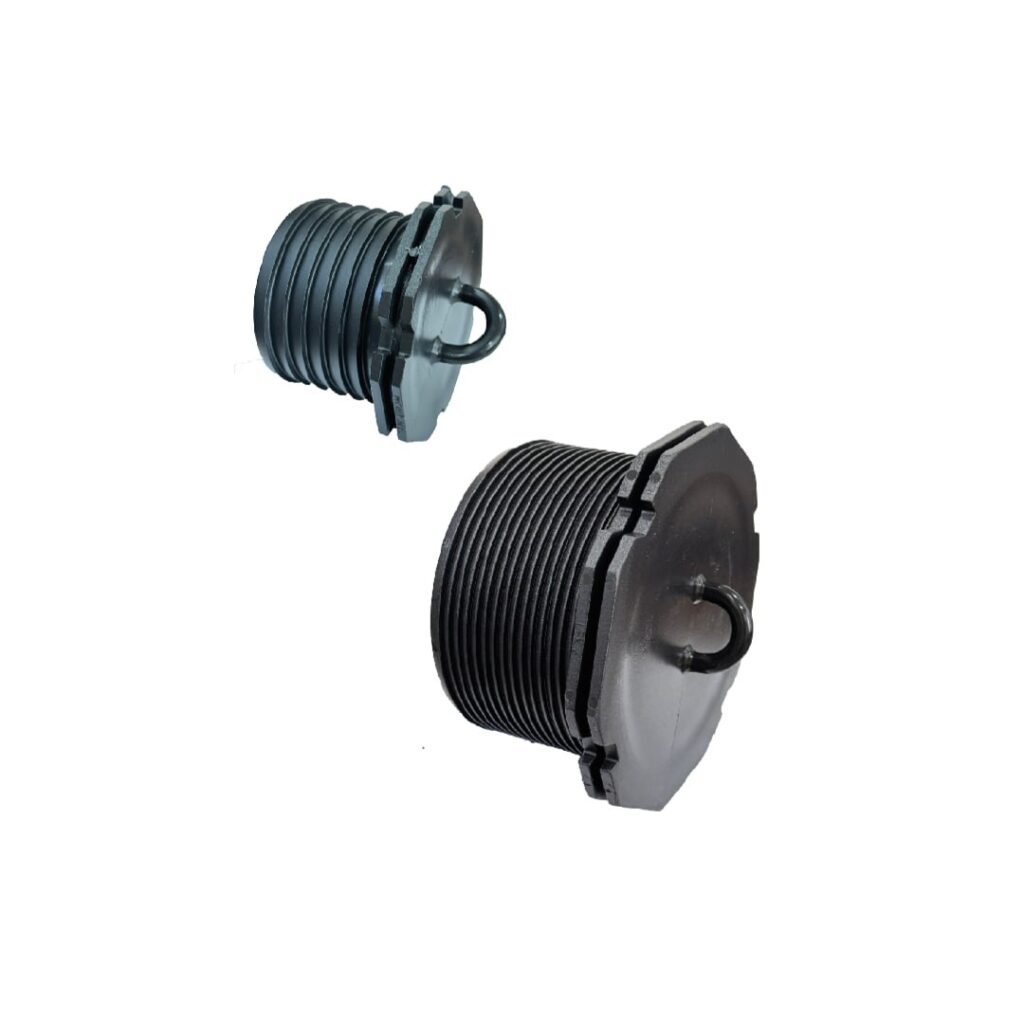

LayFlat Mainline End Plug

Code	Size (Ø)	Quantity
075 KTL K30 060 000	3”	1 pc
100 KTL K40 060 000	4”	1 pc
150 KTL K60 060 000	6"	1 pc

Категория: Accessories

This heavy-duty end plug is specifically engineered to execute a secure, high-pressure seal at the terminal point of a flexible LayFlat distribution mainline. It is deployed at the absolute end of a delivery run or on currently unused manifold outlet branches, effectively preventing fluid loss and maintaining the required operational hydraulic pressure throughout the active irrigation network.

The mechanical architecture consists of a massive, pressure-rated monolithic body featuring an external deeply ridged barbed insert (spigot) designed to seat tightly within the hose. A defining design attribute of this model is the integration of a heavy-duty metallic loop (anchoring eye) molded into the flat terminal face. This feature empowers field operators to firmly tether the end of the pressurized pipeline to a ground stake or structural anchor, completely eliminating lateral hose shifting caused by internal hydraulic pressure surges or heavy agricultural machinery moving across adjacent row fields.

Type: Terminal mainline end plug equipped with a barbed spigot and an integrated structural anchoring loop
Material: High-impact, structurally dense technical polymer immune to galvanic corrosion, open-field solar weathering, and UV degradation
Sizing matrix: 3" (three-inch industrial standard); 4" (four-inch high-volume mainline standard); 6" (six-inch ultra-high flow agricultural standard)
Retention interface: Deeply tiered multi-stage barb adapter tailored for heavy-duty bolt-driven power clamping

This industrial LayFlat terminating plug is precision-rated for installation at the terminal boundaries of large-scale, open-field crop irrigation networks and high-capacity commercial greenhouse layouts. Primary Engineering Advantages: Pipeline Structural Stabilization: The integrated metallic anchoring eye allows operators to physically "tension" and pull the flexible mainline straight, successfully preventing structural kinks, snake-coiling, or twisting along the soft fabric shell. Absolute Leak-Proof Performance: The precision-machined, extra-deep structural ridges of the spigot, when paired with a high-torque power clamp, guarantee a 100% airtight seal even under peak multi-seasonal hydraulic loads. Simplified Maintenance & Flushing: The heavy, thick-walled perimeter profile of the plug housing provides an excellent gripping surface, facilitating effortless manual removal of the end fitting to flush out accumulated sediment or clear the system at the end of the harvest season.
